Composite Technology of Activated Carbon and ACF
Combines the adsorption capacity of activated carbon with the rapid adsorption of ACF,
Achieve more efficient and stable filtering performance.
Activated Carbon Technology
Activated carbon is a porous adsorbent with a large specific surface area and strong adsorption capacity. It effectively removes residual chlorine, odors, organic compounds, heavy metals, and other contaminants from water.
- Well-developed pore structure with high adsorption capacity
- Effectively removes chlorine, odors, and organic contaminants
- Wide availability, cost-effective
- Mature, secure, and reliable
Specific Surface Area
800 ~ 1500 m²/g
Pore Volume
0.4 ~ 0.8 cm³/g

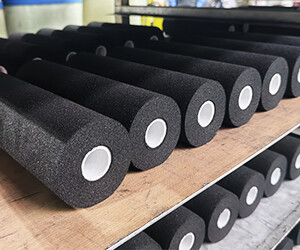

ACF technology
ACF (Activated Carbon Fiber) is a fibrous activated carbon material with well-developed adsorption and mesoporous structures. It offers rapid adsorption kinetics, making it ideal for removing low-concentration organic compounds and improving taste.
- Fibrous structure with uniformly distributed micropores
- Fast adsorption rate with excellent kinetic performance
- Low pressure drop, excellent water flow performance
- High mechanical strength and long service life
Specific Surface Area
1500 ~ 2500 m²/g
Pore Volume
0.6 ~ 1.2 cm³/g
Composite Technology Advantages
synergy
Synergistic action of activated carbon and ACF boosts both adsorption capacity and speed.
Excellent water flow performance
The ACF fiber skeleton structure effectively reduces pressure drop and increases water throughput.
Stable and reliable structure
Composite materials offer high mechanical strength, resist pulverization, and ensure stable performance.
Customizable Recipes
Customize optimized formulas and processes based on water quality and specific needs.
Fast adsorption performance
ACF's rapid adsorption boosts initial purification performance.
Long-Life Design
Extend filter lifespan, reduce replacement frequency and cost.
Performance comparison
| Performance Metrics | Activated Carbon | ACF | Activated Carbon + ACF Composite | Key Benefits |
|---|---|---|---|---|
| Specific Surface Area (m²/g) | 800~1500 | 1500~2500 | 1200~2200 | Combines high specific surface area with advantageous pore size distribution |
| Pore Volume (cm³/g) | 0.4~0.8 | 0.6~1.2 | 0.5~1.0 | Greater adsorption capacity |
| Chlorine Residual Removal Rate (%) | ≥90 | ≥95 | ≥98 | More efficient removal |
| Total Organic Carbon Removal Rate (%) | ≥75 | ≥85 | ≥92 | More thorough removal of organic matter |
| Pressure Drop (kPa) | Higher | Lower | Low | Improved water flow performance |
| Lifespan (L) | Medium | Long | Longer | Longer service life |
Customizable performance for removing residual chlorine, VOCs, THMs, odors, PFAS, and more based on customer requirements.
Application Areas
Home Water Purification
Removes chlorine, odors, and organic compounds to enhance the taste and safety of drinking water.

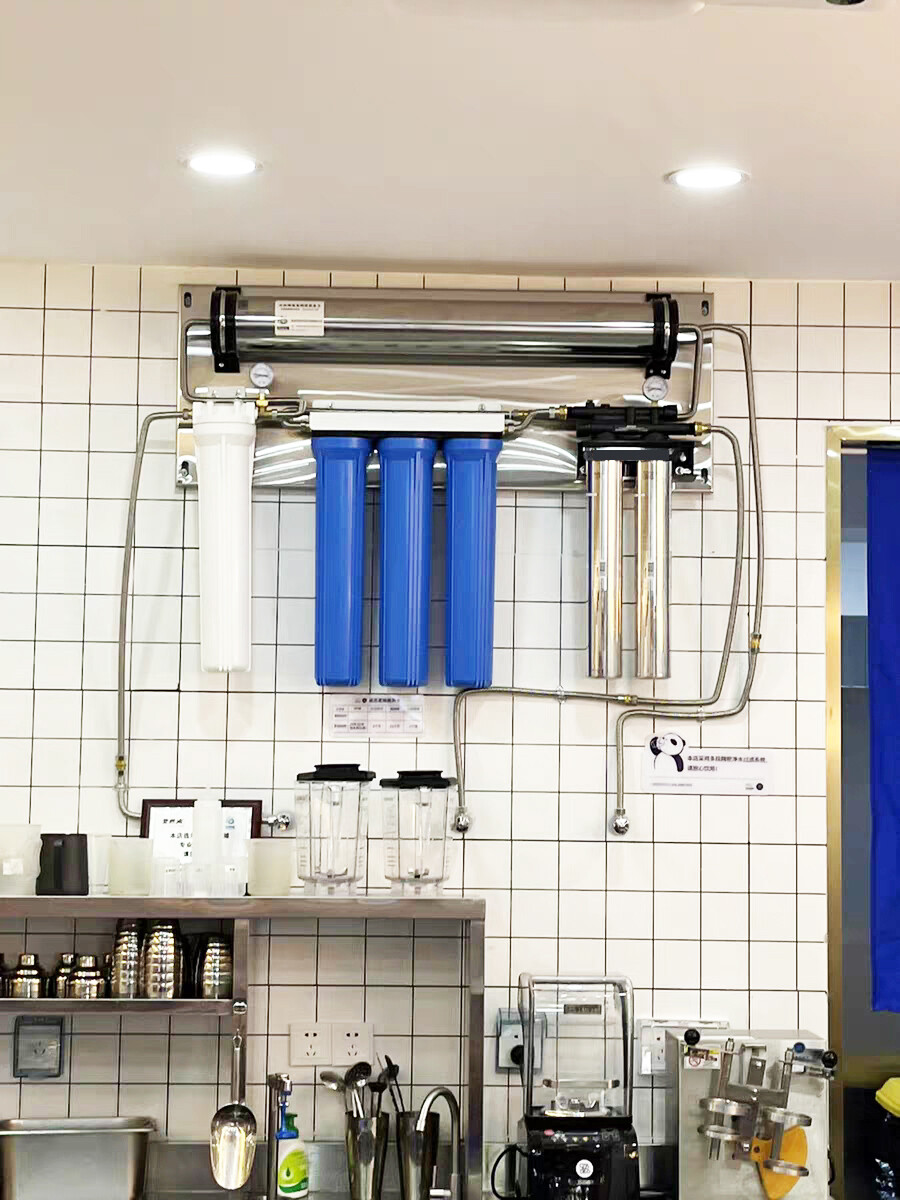

Commercial Water Purification
Suitable for commercial water dispensers, catering equipment, and large-scale water purification systems.
Shower Filter
Removes chlorine, improves water quality, and protects skin and hair health.
Refrigerator Water Filter
Eliminates odors and harmful substances to keep ingredients fresh and healthy.
Portable Water Purifier
Lightweight and portable for safe, clean drinking water—perfect for outdoor adventures and travel.
Technical Support and Joint Development
We offer formula development, performance optimization, prototype manufacturing, and OEM/ODM joint development services to deliver high-quality filtration products.
